NOS 6N1P (6N1PVI,6N1P-VI,6DJ8) Russian vacuum tubes

WE have NOS 6N1P (6N1PVI,6N1P-VI,6DJ8) Russian vacuum tubes.

vacuum tubes,6N1P,6DJ8

Made by Reflector Corp, Saratov (1989).
Packing : OEM



Special Quality tubes use letters V or I ( or both ) after fourth element.
"V" for mechanically improved tubes.
"I" for impulse improved tubes.

The label OTK on the surface of the tube bulbe means that
it is a Russian tube was gone under a military test.
OTK is an abbreviation in Russian language.
It means: it was controlled by a Military organization.



The 6N1P-VI is a miniature glass-envelope small-signal dual triode intended
for use as a line-level amplifier or driver in high-quality audio amplifiers.
Except for higher heater-current consumption and some electrical parameters,
the 6N1P-VI is similar to the 6DJ8, ECC-88 or 6922 and may substitute
for these types in some high-level audio applications.
Features include very low distortion - optimized for line stages;
medium transconductance; internally shielded between sections,
allowing their use at differing signal levels;
higher plate-voltage and dissipation rating than 6DJ8 types;
and larger cathode than 6DJ8 types,
giving it longer life and more transient current capability.
Consult with equipment manufacturer before using
the 6N1P in place of 6DJ8 types in existing equipment.

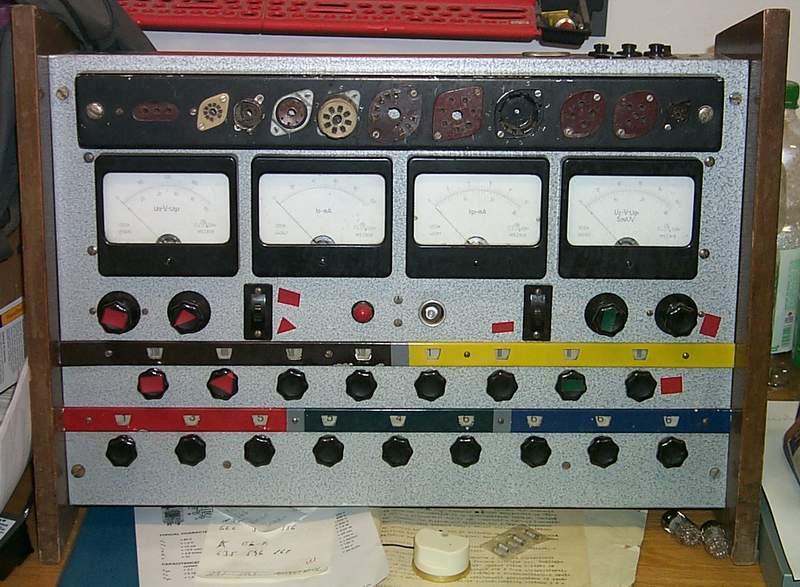

The NOS 6N1PVI (6N1P,6N1P-VI,6DJ8) Russian vacuum tubes have been checked by a calibrated CSV-2 vacuum tube tester.





Heater Voltage = 6,3 V

Anode Voltage = 250 V

Grid 1 voltage (bias) = - 4 V



Result of the mutual conductance test, as follows :


No

Anode current

Price Euro

Date Codes

Comments

Photos

001

Triode 1 : 11,0 mA

20.00 Euro / quadrate

1989

Matched quadrate set

Photo - 1



Photo - 2

Triode 2 : 11,0 mA

002

Triode 1 : 11,0 mA

1989

Triode 2 : 11,0 mA

003

Triode 1 : 11,0 mA

1989

Triode 2 : 11,0 mA

004

Triode 1 : 11,0 mA

1989

Triode 2 : 11,0 mA



No

Anode current

Price Euro

Date Codes

Comments

Photos

005

Triode 1 : 11,0 mA

20.00 Euro / quadrate

1989

Matched quadrate set

Photo - 1



Photo - 2

Triode 2 : 11,0 mA

006

Triode 1 : 11,0 mA

1989

Triode 2 : 11,0 mA

007

Triode 1 : 11,0 mA

1989

Triode 2 : 11,0 mA

008

Triode 1 : 11,0 mA

1989

Triode 2 : 11,0 mA

Vacuum tubes,Vacuum tubes,Vacuum tubes,Vacuum tubes,Vacuum tubes,Vacuum tubes

TERMS:

Each tube has been packaged in two layers by use of air insulating
wrapping paper.
So packaged tubes are housed in an international standard size box.
We use foam inside the box to preserve the tubes against bumps.

Method of payment is : Euro or USD.

Paying method:

- per PayPal,
- per International Money Order,
- per International Postal Money Order,
- per Travelers Express Money Order,
- per American Express Travelers Cheque,
- per Western Union Money Order,
- per Personal Cheque,
- per Bank Transferring,
- per Cash in a registered letter.



If you have any questions , I will answer as quick as possible.
