Made by Reflector Corp, Saratov (1992).
Packing : OEM

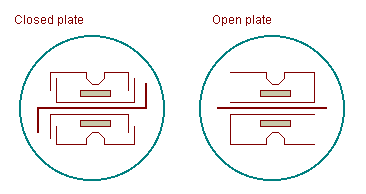

There are two designs of this tube : one has
box-shaped plate,
consisting of two Pi-shaped halves, closed on all four sides.
These tubes were marked with Reflector logo.
The other type has a Pi-profile plate,
missing one side so the grid/cathode assemblies are visible.
This tubes have closed plate = see the photo :
Special Quality tubes use letters E or B ( or
both ) after fourth element.
E for long - lived ( up to 5000 hours and more ) tubes.
B for mechanically improved tubes.
The label OTK on the surface of the tube bulbe means that
it is a Russian tube was gone under a military test.
OTK is an abbreviation in Russian language.
It means: it was controlled by a Military organization.
The NOS 6N23PEV (6N23P,6N23P-EV,E88CC,6922)
Russian vacuum tubes have been checked by a calibrated Hickok 539B
vacuum tube
tester.
By the operating manual of the tester the typical value
of the MC (Mutual Conductance) of the NEW
6N23PEV (6N23P,6N23P-EV,E88CC,6922) vacuum tube is : 10.500
This is taken as 100%.
(Given for each tube System 1 and System 2 [in Micromhos]).
On each tube I placed a little white sticker with the measurement results.
MUTUAL CONDUCTANCE TEST: here we can get exact
numerical value in micromhos.
The condition of TUT (Tube Under Test) can be expressed in percent.
For example : in case of the NEW 6N23PEV (6N23P,6N23P-EV,E88CC,6922) listed typical
value of mutual conductance is 10.500 micromhos.
If the TUT has 11.000, the percental condition is
(11.000/10.500) x 100% = 105 %.
Result of the mutual conductance test, as follows :
|
No |
MC |
Price Euro |
Comments |
Photos/Attachments |
|
001 |
Triode 1 : 13.000 = 124 % |
60.00 Euro / quadrate Sold |
Matched quadrate |
Photo - 1
Photo - 2
|
|
Triode 1 : 13.000 = 124 % |
||||
|
002 |
Triode 1 : 13.000 = 124 % |
|||
|
Triode 1 : 13.000 = 124 % |
||||
|
003 |
Triode 1 : 13.000 = 124 % |
Reflector Corp, Saratov 1992 |
||
|
Triode 1 : 13.000 = 124 % |
||||
|
004 |
Triode 1 : 13.000 = 124 % |
|||
|
Triode 1 : 13.000 = 124 % |
|
No |
MC |
Price Euro |
Comments |
Photos/Attachments |
|
005 |
Triode 1 : 13.250 = 126 % |
60.00 Euro / quadrate Sold |
Matched quadrate |
Photo - 1
Photo - 2
|
|
Triode 1 : 13.250 = 126 % |
||||
|
006 |
Triode 1 : 13.250 = 126 % |
|||
|
Triode 1 : 13.250 = 126 % |
||||
|
007 |
Triode 1 : 13.250 = 126 % |
Reflector Corp, Saratov 1992 |
||
|
Triode 1 : 13.250 = 126 % |
||||
|
008 |
Triode 1 : 13.250 = 126 % |
|||
|
Triode 1 : 13.250 = 126 % |
|
No |
MC |
Price USD |
Comments |
Photos/Attachments |
|
009 |
Triode 1 : 13.750 = 131 % |
80.00 USD / quadrate Sold |
Matched quadrate |
Photo - 1
Photo - 2
|
|
Triode 1 : 13.750 = 131 % |
||||
|
010 |
Triode 1 : 13.750 = 131 % |
|||
|
Triode 1 : 13.750 = 131 % |
||||
|
011 |
Triode 1 : 13.750 = 131 % |
Reflector Corp, Saratov 1992 |
||
|
Triode 1 : 13.750 = 131 % |
||||
|
012 |
Triode 1 : 13.750 = 131 % |
|||
|
Triode 1 : 13.750 = 131 % |
Vacuum tubes,Vacuum tubes,Vacuum tubes,Vacuum tubes,Vacuum tubes,Vacuum tubes
TERMS:
Each tube has been packaged in two layers by
use of air insulating
wrapping paper.
So packaged tubes are housed in an international standard size box.
We use foam inside the box to preserve the tubes against bumps.
Method of payment is : Euro or USD.
Paying method:
- per PayPal,
- per International Money Order,
- per International Postal Money Order,
- per Travelers Express Money Order,
- per American Express Travelers Cheque,
- per Western Union Money Order,
- per Personal Cheque,
- per Bank Transferring,
- per Cash in a registered letter.
If you have any questions , I will answer as quick as possible.
Thanks for visiting.
